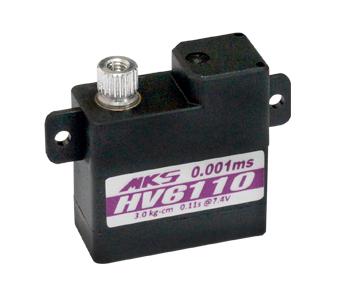

MKS HV6110 Wing Servo

Total: 0.00

MKS HV6110

  • Torque: 2.6 kg-cm (6.0V) / 3.0 kg-cm (7.4V) / 3.4 kg-cm (8.2V)
  • Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
  • Weight: 10 g



Dimension 22.5 x 10 x 23.5 mm

Working Voltage 3.8V~8.4 V DC Volt (2S Lipo un-regulated)
Working frequency 1520μs / 333hz
Dead Band 0.001 ms (Default)
Bearing 2 Jewel Bearing + 1 Bronze Bushing
Motor Coreless Motor
Gear Metal + Aluminum-magnesium alloy Gears
