MKS DS75k Servo

Total: 0.00

The all new MKS DS75k Servo, an ideal servo for DLG and small light models that require a robust mini servo with high torque and precision

Spec:

  • Torque: 1.6 kg-cm (3.7V) / 2.0 kg-cm (4.8V) / 2.4 kg-cm (6.0V)
  •
  • Speed: 0.22s (3.7V) / 0.16s (4.8V) / 0.13s (6.0V)
  •
  • Weight: 7.5 g (+0.1)(mounting tab)
  •
  • 7.4 g (+0.1)(no mounting tab)

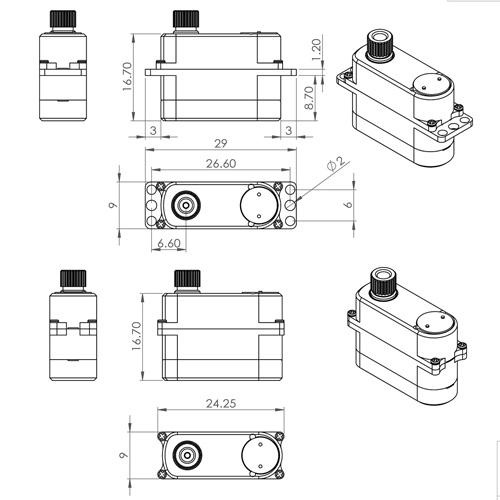

Dimension:23 x 9 x 16.7 mm
Working Voltage:3.5 ~ 6.0 V DC Volts (compatible with 1S LiPo)
Working frequency:1520μs / 333hz
Dead Band:0.001 ms (Default)
Bearing:2BB
Motor:Coreless Motor
Gear:7075 Chrome-Titanium alloy gear
Case:6061 Aluminum CNC Casing
