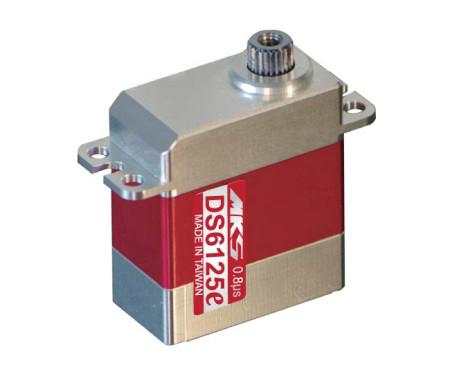

| DS6125-E |
| Dead band: | 0.8μs = 0.0008ms (Default) |
| Control System: | Pulse Width Control |
| Working frequence: | 1500μs / 333hz data: 850μs~2150μs |
| (RX) Required Pulse: | 3.0~5.0 Volt Peak to Peak Square Wave |
| Operating Voltage: | 4.8~6.0 V DC Volts |
| Operating Temperature Range: | -10 to 60 Degree C |
| Operating Speed (4.8V): | 0.066 sec/60° degrees at no load |
| Operating Speed (6V): | 0.053 sec/60° dagrees at no load (use Sbec with 6V) |
| Stall Torque (4.8V): | 2.58 kg-cm (35.83oz/in) |
| Stall Torque (6V): | 3.25 kg-cm (45.13oz/in) (use Sbec with 6V) |
| 360° Modifiable: | YES |
| Motor Type: | Coreless Motor |
| Potentiometer Drive: | Direct Drive |
| Driver Type: | FET |
| Bearing Type: | Dual Ball Bearings |
| Gear Type: | Chrome-Titanium alloy gear |
| Programmable: | NO |
| Connector Wire Length: | 20.0 cm (7.86 in) |
| Dimensions: | 23X12X27.25 mm (0.9X0.47X1.07 in) |
| Weight: | 21.21 g (0.74 oz) |
| | |
