KST LDS X10 Servo Frame Kit

Total: 0.00

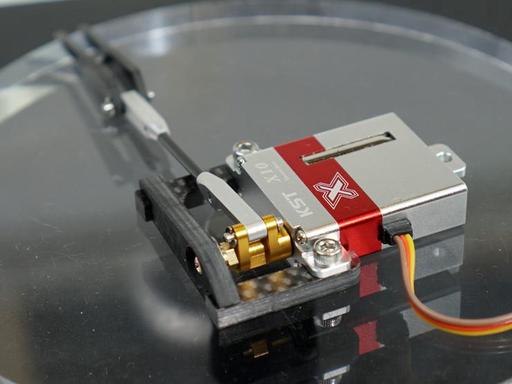

Manufactured by Tomas Liu Studio.Full carbon and aluminium LDS Servo frame kit for KST wing servos, to fit most applications.

Two options of Servo arm drive, recommended,  6.35mm for the flaps and 5mm for the ailerons


Package include:

2pcs D2.5x96mm Carbon Fiber Push Rod
2pcs Dual Servo Horn H:5mm or 6.35mm pitch
2pcs Servo Frame
4pcs Ø2x10.5mm Stanless Steel Pin
8pcs E-clip
4pcs M3x6 Screw
2pcs M2.3x20 Screw
2pcs Aluminium Connector 4x4x22mm (for Dual Control Horn)
2pcs Aluminium Connector R 3.9x3.9x24mm (for LDS Servo Horn)
4pcs Optional Control Horn


Application for KST X10/X10mini/DS225MG/DS125MG
Anodizied Aluminium Alloy Surface

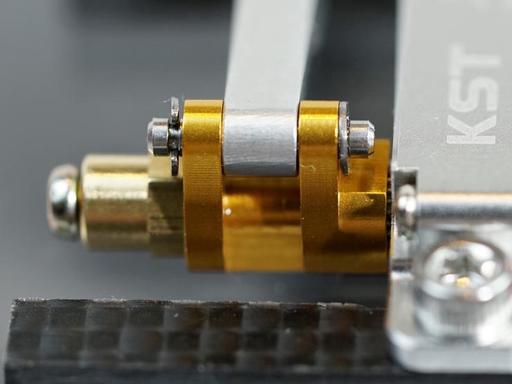

The linkage and servo arm run into each other so that the maximum servo travel can be used

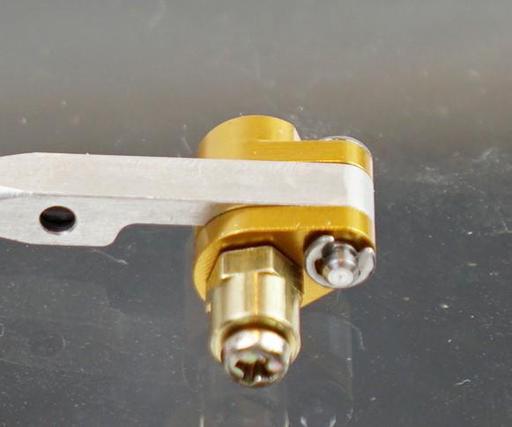

Precisely fitting and play-free servo arm (center distance 5mm)
Optimal power transmittion possible
The Length of Carbon Push Rod can be adjusted easily. L: 45-123mm
