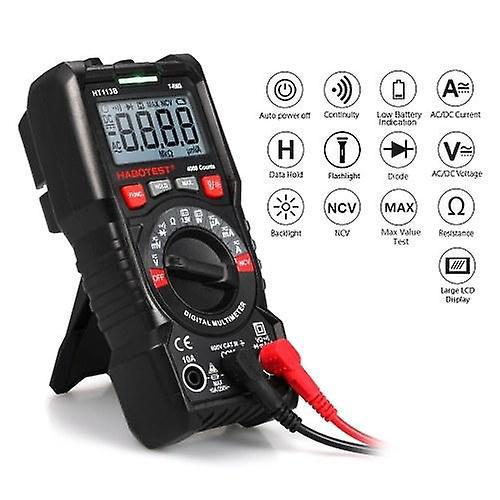

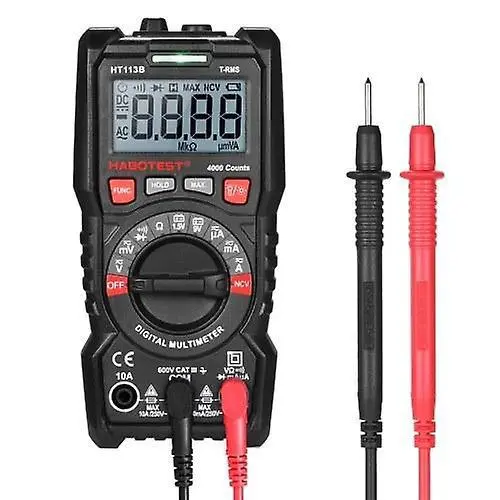

HABOTESE HT113B Digital Multimeter Auto Range
Need to test electricity or solve automotive & household electrical problems with multimeter? Want more accurate range display as 4000 counts, leading top of current technology? You can choose our HABOTESE multimeter. This brand new multi-functional multi meter with high precision and high performance MCU processor can measure DC/AC voltage/current, resistance. It can also test NCV(non-contact voltage), diode and continuity. With a bracket on the back, convenient to place it on the table and read the values.
Features:
4000 Counts & Multi-function: Max. display value 4000 counts and test AC/DC voltage, DC/AC current, NCV, resistance, 1.5V/9V battery test, continuity, diode with true RMS and full-featured design.
Precision Circuit Board & Overload Protection - With over load protection, quickly identifies existing voltage, shielding interference & continuity test can be 60Ω. Show "OL" on the LCD if overload.

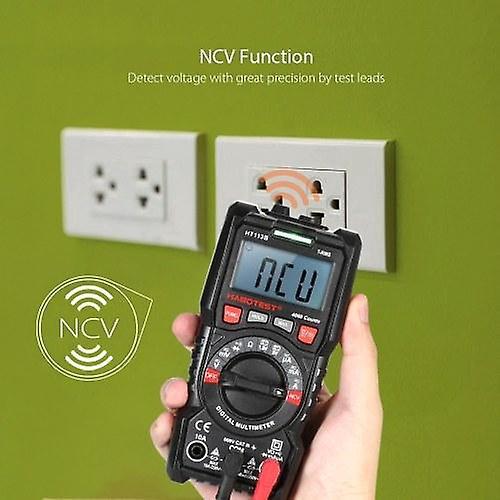

More Functions Selection: NCV test with visual and audible alarm ensure your life safety, with low battery indication, maximum measurement, data hold, auto power off function and full symbol display clearly.
Easy to Use & Clear to Read: Easy to operate, accurate readings, low power consumption, perfect home tool for the laboratory, home, factory, etc. Protected by rubber for drop protection.
Portable Design: There is a back bracket for supporting multimeter, and also can collect test probe for your convenience. Backlight LCD and flashlight for easy operation in dimly lit areas.
Specifications:
Brand Name: HABOTESE
Model: HT113B
Color: Black
Material: ABS
Display: LCD Display with Backlight, 4000 Counts
Range Control: Auto Range
Screen Size: 45 x 25mm
Operating Environment: CAT III 600V
Sampling Time: about 3 times/second
DC Voltage Range: 400mV/4V/40V/400V/600V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
AC Voltage Range: 400mV/4V/40V/400V/600V
AC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
DC Current Range: 400μA/4000μA/40mA/400mA/10A
DC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.01A
AC Current Range: 400μA/4000μA/40mA/400mA/10A
AC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.01A
Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Resistance Resolution: 0.1Ω/0.001k1Ω/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Frequency of AC Voltage: 40~400Hz
Continuity Test & NCV Test: Audible and Visual Alarm
Function: AC/DC Voltage, DC/AC Current, Resistance, True RMS, Data Hold, Backlight, Auto Power off, NCV Test, Continuity Test with Buzzer, Over Load Protection, Diode Test, Low Battery Indication, Flashlight, 1.5V/9V Battery Test, Maximum Measurement
Working Temperature/Humidity: 0~40℃, <80%RH
Storage Temperature/Humidity: -10~60℃, <70%RH
Power Supply: 2 x 1.5V AAA Battery (Not Included)
Item Size: 151x75x 46mm / 5.9 x 3.0 x1.8in
Item Weight: 207g / 7.3oz
Package Size: 15.5 * 11 * 5.2cm / 6.1 * 4.3 * 2.0in
Package Weight: 296g / 10.5z
Package List:
1 Multimeter
1 Pair of Test Probe
1 User Manual(English)
