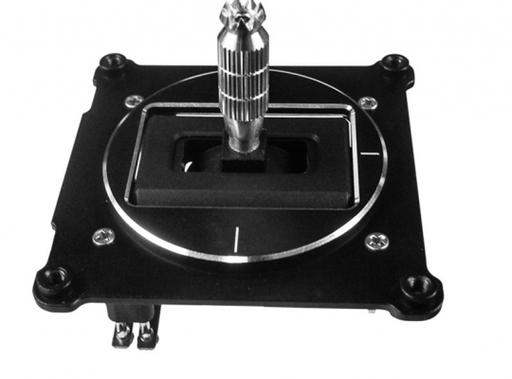

Upgrade your FrSky Taranis QX7 with the super accurate and smooth M7 gimbals with Hall Sensor technology

SPECIFICATION:

• Model: Gimbal-M7
•  Supply Voltage (VCC): DC 3.0 ~ ±0.5V
•  Sensitivity: 2.50 mV/G
•  Linear Output Voltage Range: 0.1   ~ （ VCC +0.1） V
• Output Load Resistance (output to ground) >15KQ
•  Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
•  Noise (no load): ≤40mVpp
• Quiescent Output Power Supply Rjection: -69dB

Machanical Specification:

• X-Axis Adjustable Angle Range: 60°±5°
• Y-Axis Adjustable Angle Range: 60°±5°
• Adjustable Height Range: 24.5mm-30.5mm
• Installation Dimension: 42.9mmx54mm

FEATURES:

•  Hall sensor
•  4 ball-bearings
•  Adjustable tension
• Can be enable or disable self centering on both axis and ratcheting on the Y axis
• Special material quality that wears well
