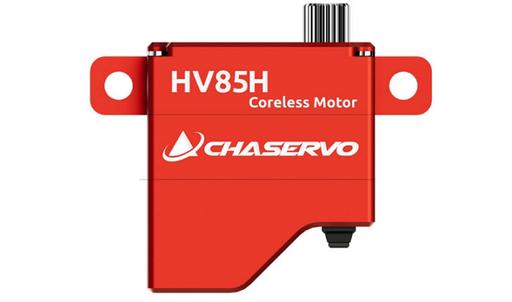

New to the market the CHAServo HV85 micro servo at 8.5mm thick its ideal for restricted applications with a heavty torque of 8.9kg

Specification:

• Rated Voltage: DC7.4V Voltage Range: DC6.0V-8.4V

• Torque:
• [email protected]
• [email protected]
• [email protected]

• Speed:
• 0.16ec/60°@6.0V
• 0.12sec/60°@7.4V
• 0.11sec/60°@8.4V

• Talling Current:
• [email protected]
• [email protected]
• [email protected]

• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±50° =100° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programable
• Programable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 24*8.5*27±0.2(mm)
• Weight: 15g±10%
