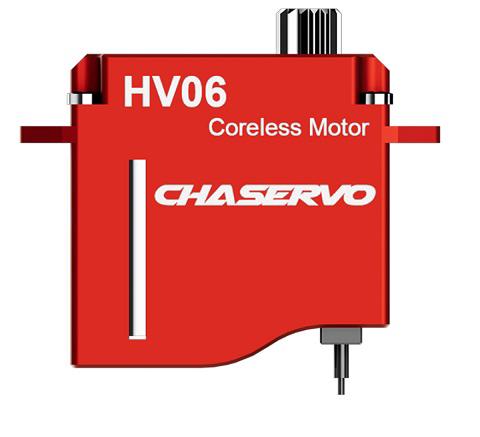

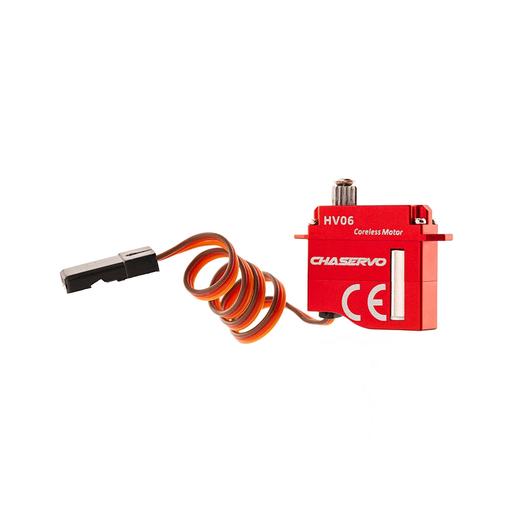

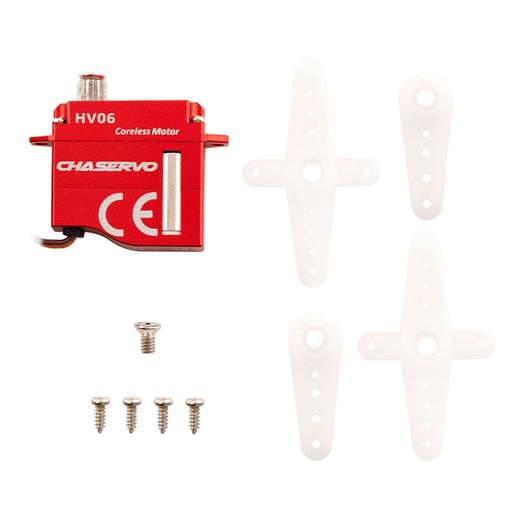

CHAServo HV06 Sub Micro Servo

Total: 0.00

New to the market the CHAServo HV06 sub micro servo 6mm thick with 2.5kg of torque ideal for HLG, DLG applications


Rated voltage: DC8.4V

Voltage Range: DC6.0V-8.4V

Stalling Torque: [email protected]/ [email protected]/ [email protected]

No-load Speed: 0.07sec/ 60°@6.0V/ 0.06sec/ 60°@7.4V/ 0.05sec/ 60°@8.4V

Default Travel Angle: ±60° = 120° Total travel

Working Frequency: 1520us/20KHz

Operating Temperature: -10°C......+65°C

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Programmable: YES

Ball Bearing: 2BB

Case Dimensions: 19mmx6mmx18.5mm+0.2mm

Weight: 5.8g±10%
