• MVVS Brushless 2.0/1120 junior

    Click image to enlarge
    - MVVS Brushless 2.0/1120 junior Out of stock
    £52.94 (Incl. VAT)
    Qty
    PayPal credit available

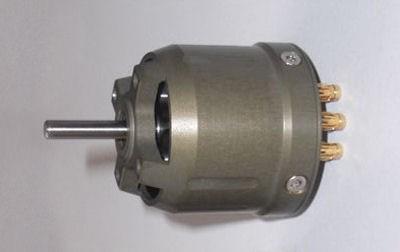

    MVVS 20/1120 Junior Brushless Motor







    Product Description

    AXi 2808/24 equivalant 36mm diameter lightweight inrunner/outrunner brushless motor with 5mm shaft. MVVS electric motors are particularly suited for use in electric powered gliders. This new design offers high levels of durability as the hardened 4mm shaft running in precision ball races is supported directly in the ends of the motor case. We are particularly excited about the fact that MVVS motors require no specialist techniques for servicing and all spares are readily available. MVVS electric motors are produced along with their model engine range at Brno in the Czech Republic.

    Technical data:

    RPM/Volt 1120
    Diameter 36mm (plus rear flange)
    Length 31mm
    Shaft diameter 4mm
    Shaft length 18mm
    Weight 87g
    Normal voltage range 6-12v
    Maximum efficiency current 6-14A
    Maximum current 18A/30s

    Suggested use:
    Fun Fly to 06kg 3 LiPo APC-E 10x5
    Aerobatic to 07kg 4 LiPo 85x5
    Trainer to 12kg 3 LiPo 95x6
    Glider to 12kg 3 LiPo Graupner CAM 9x5
    Hotliner to 08kg 3 LiPo Graupner CAM 9x5
    Twin Model to 18kg 3LiPo 9x5

    Test figures:
    20/1120 3S Shark POWER 1800 (Polyquest 20C)
    9x6 APC-E 7800 135A
    10x5 APC-E 7700 15A
    10x7 APC-E 7100 175A
