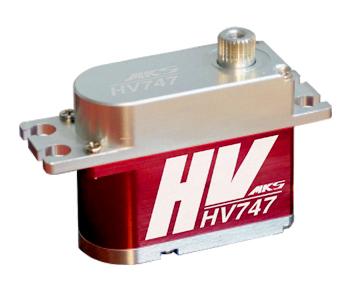

MKS HV747 High Torque Servo

MKS HV747 - High Torque Servo for Glider Tail / Airplane / Jet / Electric Plane

• 12 x 20 mm coreless motor, high efficiency, even more durability.
• 9mm VR, Ultrahigh-resolution.
• New type of gear structure, giving negligible backlash and even longer service life.
•

The tail servo of choice for the F3f World Record holder!

Torque: 11.8 kg-cm (6.0V) / 13.8 kg-cm (7.4V) / 15 kg-cm (8.2V)

Speed: 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)

Weight:   38.55 gm

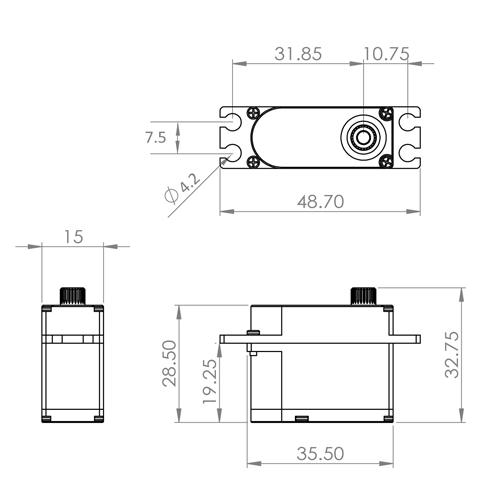

Dimension：35.5 x 15 x 28.5 mm
Working Voltage：5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency：1520μs / 333hz
Dead Band：0.001 ms (Default)
Bearing：2BB
Motor：Coreless Motor
Gear：Chrome-Titanium alloy gear
Electric current draw： 2.6A max.(8.2V) │ 2.4A max.(7.4V) │ 2.0A max (6.0V)
Wire Length：29.5 cm
