    MKS HV70 Servo
    MKS HV70 Servo
    Click image to enlarge
    - MKS HV70 Servo Out of stock
    £56.40 (Incl. VAT)
    Qty

    MKS HV70 Servo Micro wing servo



    Torque (3.7V):  1.5 kg-cm /  20.8 oz-in



    Torque (4.8V):  2.0 kg-cm /  27.8 oz-in



    Torque (6.0V):  2.6 kg-cm /  36.1 oz-in



    Torque (7.4V):  2.9 kg-cm /  40.3 oz-in



    Torque (8.2V):  3.1 kg-cm /  43.1 oz-in



    Speed:  0.125 s (3.7V)  /  0.110 s (4.8V)  /   0.085 s (6.0V)  / 0.068 s (7.4V)  /  0.060 s (8.2V)



    Weight:  5.4 g (±0.3 g)  /  0.19 oz (±0.01 oz)

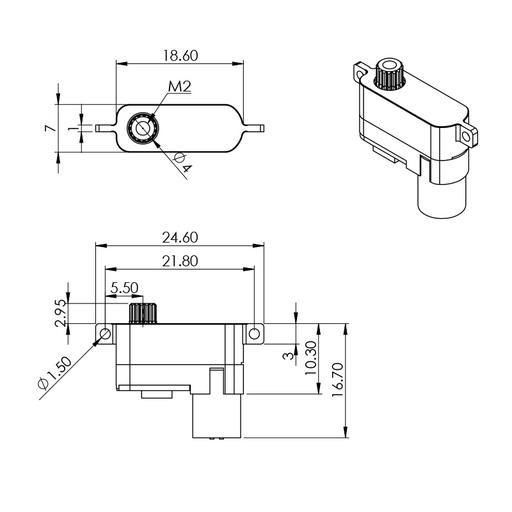

    Dimension:  18.6 x 7 x 16.7 mm



    Specification:



    Torque (kg-cm)          1.5 (3.7V) / 2.0 (4.8V) / 2.6 (6.0V) / 2.9 (7.4V) / 3.1 (8.2V)
    Torque (oz-in)             20.8 (3.7V) / 27.8 (4.8V) / 36.1 (6.0V) / 40.3 (7.4V) / 43.1 (8.2V)
    Speed                          0.125 s (3.7V) / 0.110 s (4.8V) / 0.085 s (6.0V) / 0.068 s (7.4V) / 0.060 s (8.2V)
    Working Frequency  1520μs / 333Hz
    Dead Band                  0.001 ms (Default)
    Bearing                        1*Copper Bushing
    Gear                             Metal Alloy Gear
    Motor                            Coreless Motor
