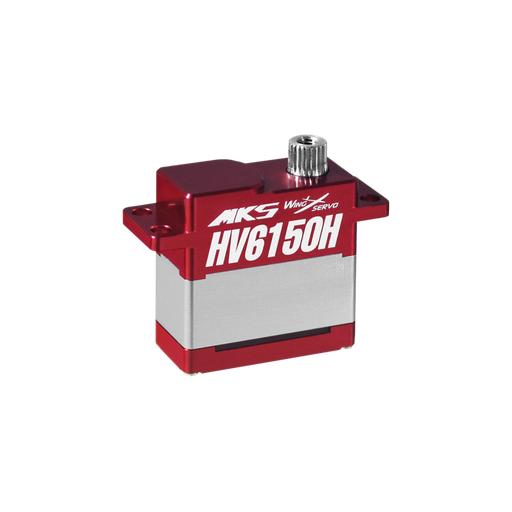

• MKS HV6150H Servo

    Click image to enlarge
    - MKS HV6150H Servo 10 in stock
    £58.20 (Incl. VAT)
    Qty - +

    MKS HV6160H Digital Metal case/Gears Servo



    Torque (4.8V):  6.3 kg-cm / 87.4 oz-in

    Torque (6.0V):  8.2 kg-cm / 113.8 oz-in

    Torque (7.4V):  9.8 kg-cm / 136.1 oz-in

    Torque (8.2V):  10.9 kg-cm / 151.3 oz-in

    Speed: 0.274 s (4.8V)  /  0.190 s (6.0V)  /  0.176 s (7.4V)  /  0.159 s (8.2V)

    Weight: 17.4 g  (0.61 oz)

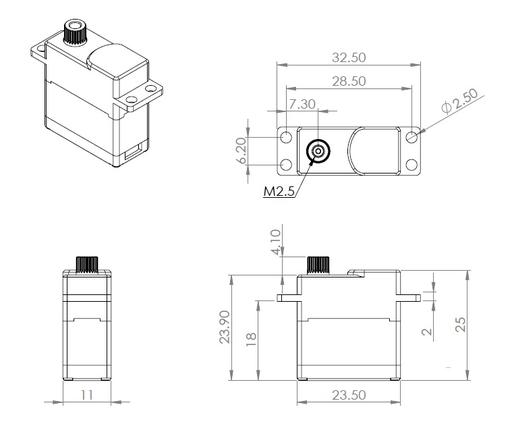

    Dimension: 23.5 x 11 x 25 mm



    Servo Specifications:



    Torque                                        (kg-cm) 6.3(4.8V) / 8.2(6.0V) / 9.8(7.4V) / 10.9(8.2V)
    Torque                                        (oz-in) 87.4(4.8V) / 113.8(6.0V) / 136.1(7.4V) / 151.3(8.2V)
    Speed                                         0.274 s (4.8V) / 0.190 s (6.0V) / 0.176 s (7.4V) / 0.159 s (8.2V)
    Stall Current (at locked load) 0.8A (4.8V) / 0.96A (6.0V) / 1.2A (7.4V) / 1.35A (8.2V)
    Working Voltage                        4.8V ~ 8.4V DC Volt
    Working Frequency                   1520μs / 333Hz
    Dead Band                                  0.001 ms (Default)
    Bearing                                        2*Oil-retaining Bearing + 2*Jewel Bearing
    Gear                                            Metal Alloy Gear
    Motor                                            Coreless Moto
