  • MKS HV6150 Servo

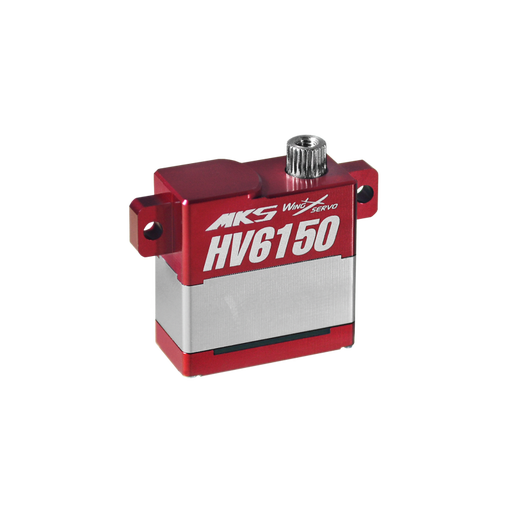

    MKS HV6150 Servo
    MKS HV6150 Servo
    Click image to enlarge
    - MKS HV6150 Servo 2 in stock
    £58.20 (Incl. VAT)
    Qty - +
    NEW! MKS HV6150 High Torque wing servo


    Torque (4.8V):  6.3 kg-cm / 87.4 oz-in

    Torque (6.0V):  8.2 kg-cm / 113.8 oz-in

    Torque (7.4V):  9.8 kg-cm / 136.1 oz-in

    Torque (8.2V):  10.9 kg-cm / 151.3 oz-in

    Speed:                0.274 s (4.8V)  /  0.190 s (6.0V)  /  0.176 s (7.4V)  /  0.159 s (8.2V)

    Weight:               16.4 g  (0.578 oz)

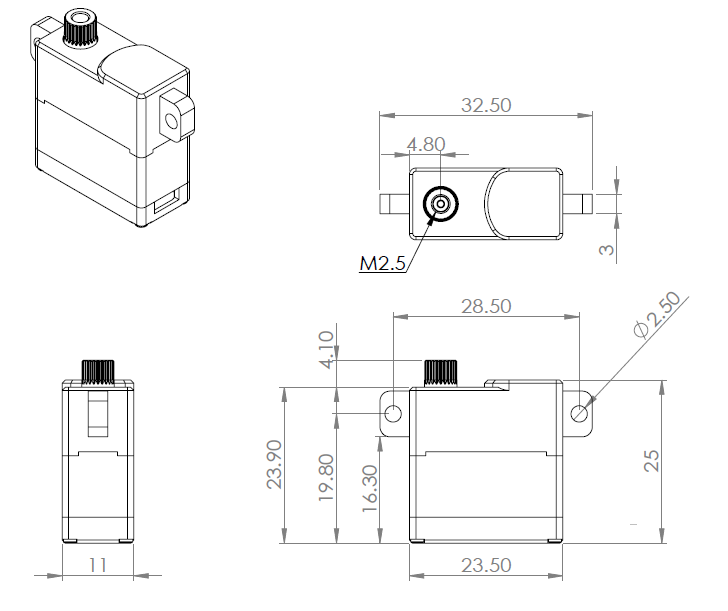

    Dimension:          23.5 x 11 x 25 mm


    Specification:

    Torque (kg-cm) -                        6.3(4.8V) / 8.2(6.0V) / 9.8(7.4V) / 10.9(8.2V)
    Torque (oz-in) -                          87.4(4.8V) / 113.8(6.0V) / 136.1(7.4V) / 151.3(8.2V)
    Speed -                                        0.274 s (4.8V) / 0.190 s (6.0V) / 0.176 s (7.4V) / 0.159 s (8.2V)
    Stall Current (at locked load) - 0.8A (4.8V) / 0.96A (6.0V) / 1.2A (7.4V) / 1.35A (8.2V)
    Working Voltage -                      4.8V ~ 8.4V DC Volt
    Working Frequency -                 1520μs / 333Hz
    Dead Band -                               0.001 ms (Default)
    Bearing -                                     2xOil-retaining Bearing + 2*Jewel Bearing
    Gear -                                           Metal Alloy Gear
    Motor -                                        Coreless Motor
