• MKS HS75 Servo

    Click image to enlarge
    - MKS HS75 Servo 16 in stock
    £68.40 (Incl. VAT)
    Qty - +

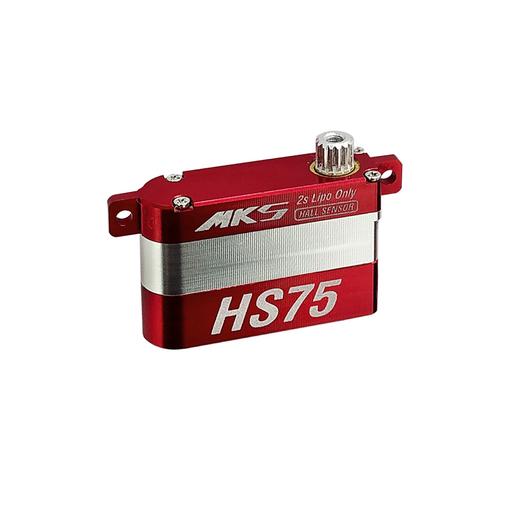

    MKS HS75 Micro wing servo with Hall Sensor





    Torque (6.0V):  3.4 kg-cm / 47.2 oz-in



    Torque (7.4V):  3.8 kg-cm / 52.8 oz-in



    Torque (8.2V):  4.0 kg-cm / 55.5 oz-in



    Speed:    0.143 s (4.8V)  /   0.114 s (6.0V)  / 0.094 s (7.4V)  /  0.087 s (8.2V)



    Weight:  7.9 g (±0.3 g)  /  0.28 oz (±0.01 oz)

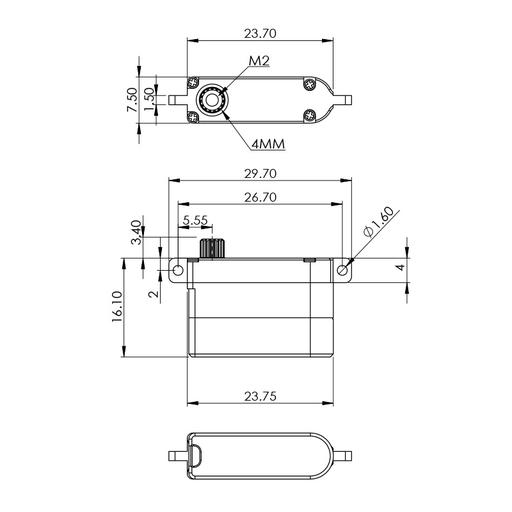

    Dimension:  23.75 x 7.5 x 16.1 mm



    Specification:





    Torque (kg-cm)                  3.4 (6.0V) / 3.8 (7.4V) / 4.0 (8.2V)
    Torque (oz-in)                  37.5 (4.8V) / 47.2 (6.0V) / 52.8 (7.4V) / 55.5 (8.2V)
    Speed 0.143 s                  (4.8V) / 0.114 s (6.0V) / 0.094 s (7.4V) / 0.087 s (8.2V)
    Working Voltage                 6.0V ~ 8.4V DC Volts
    Working Frequency          1520μs / 333Hz
    Dead Band                         0.001 ms (Default)
    Bearing                               2*Copper Bushings
    Gear                                    Metal Alloy Gear
    Motor                                   Coreless Motor
