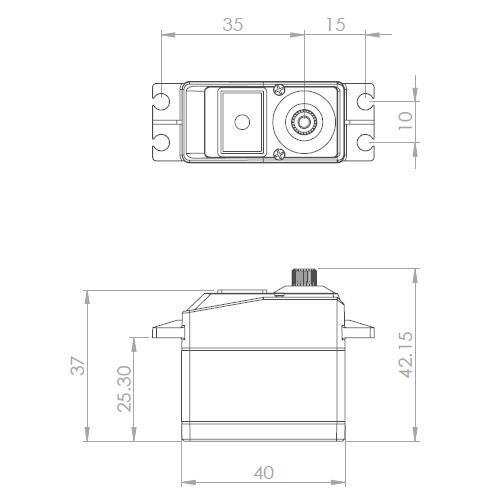

/files/mks-servos/DS9910 dims.jpg

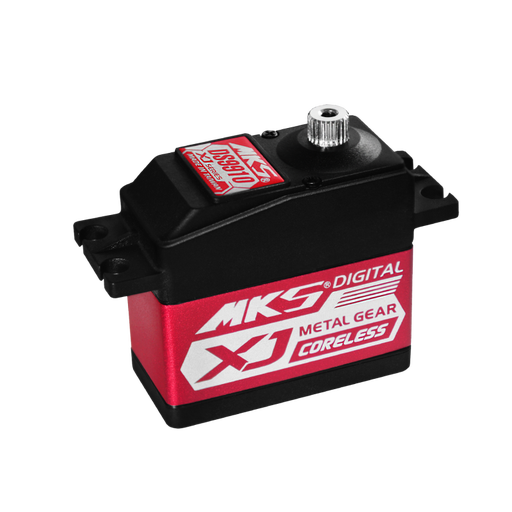

MKS DS9910 XJ Servo

Total: 0.00



The new XJ series servos form MKS Ideal For F3A Model, Jet



- Three Coppers Bushings / Strong, Accurate

- Waterproof Bearing / Dustproof, Waterproof

- Metal Alloy Gear / Wear-resistant, Smooth

- Middle Aluminium Alloy Case / High Heat Dissipation

- Japan High Quality Coreless Motor / Competition Level, High performance, High response, equal level as DS670. Providing high torque, incredible efficiency, and low power consumption.

- 0.0007ms High Resolution.



Specification:





  • Torque (kg-cm) 21 (4.8V) / 26 (6.0V)
  • Torque (oz-in) 291.6 (4.8V) / 361.1 (6.0V)
  • Speed 0.198 s (4.8V) / 0.159 s (6.0V)
  • Stall Current (at locked load) 4.1A (6.0V) / 4.6A (6.8V)
  • Working Voltage 3.8 ~ 6.8 V DC Volts
  • Working Frequency 1520μs / 333Hz
  • Dead Band 0.0007ms (Default)
  • Bearing 2* Ball Bearing
  • Gear Metal Alloy Gear
  • Motor Japan High Quality Coreless Motor
