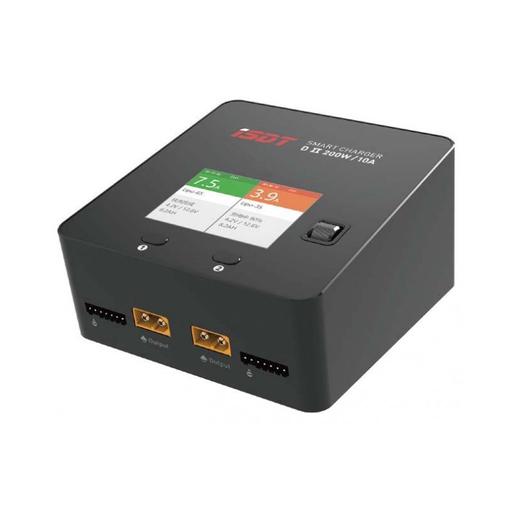

ISDT D2 Dual Smart Charger 200W 20A SC-D2
Charger iSDT Dual Smart Charger 200W 20A SC-D2
iSDT is renowned for their ergonomically designed, small, full function chargers. The D2 Smart balance charger continues this great range of efficient chargers.
It is powered by a wide range of AC (100 to 240V) with industrial power management allowing it to be used anywhere in the world. The D2 provides a huge 200W of power over dual outputs. All without interference between outputs. There is support for 6S balance charging and discharging with two output ports. There is even a 5V/2A USB output power connector on the side of the unit which makes it easy to charge your mobile phone or other electronic devices.
By utilizing a PFC circuit the unit is more stable and there is less interference from the power grid. It comes with lots of protection such as short current (SCP), overload (OLP), over voltage (OVP) and over temperature (OTP). It has an exceptional performance for its size giving a power space ratio of 273W per litre. Much better than similar products.
The unit is kept cool by using a carefully optimized internal structure and high-speed, ball-bearing, dual fans to promote an active cooling system.
High-speed efficient synchronous digital power supply technology combined with scOs specially designed for smart charging Operating System to provide optimal performance. Firmware can be updated via your PC.
• scOs Specially designed OS for smart charging
• Wild range AC Input, 200w of dual output (without interference)
• 5V/2A USB output power from side of the unit
• Short current protection (SCP)
• Overload protection (OLP)
• Over voltage protection (OVP)
• Over Temperature protection (OTP)
• High-speed efficient synchronous digital power supply technology
• Dual-fan high-speed ball-bearing fan promotes active cooling efficiency
• One key shuttle control
Input: AC 100~240V
Charge Current: 0.1-12.0A x 2
Discharge Current: 0.1-3.0A x 2
Max Charge Capacity: 200W
Max Discharge Capacity: 5W x 2
Balancing Current: 1A/cell x 2
Balance Cells: 6S x 2
Display: 2.4” 320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 120x108x70 mm
Supported Batt. Type: LiHv (1-6S), LiPo (1-6S), LiFe (1-6S), Lilon (1-6S), NiMH(1-6S), Cd (1-16S), Pb (1-12S)
