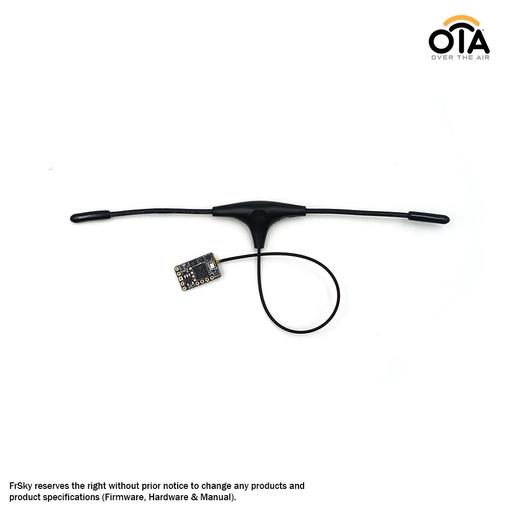

• FrSky R9 Mini OTA 868Mhz Receiver

    Click image to enlarge
    - FrSky R9 Mini OTA 868Mhz Receiver 20+ in stock
    £20.40 (Incl. VAT)
    Qty - +

    Please note the OTA receivers come with ACCESS firmware but can be flashed with ACCST

    The 868MHz R9 Mini-OTA receiver implements the ACCESS protocol and brings the user improved performance and features. The R9 Mini-OTA supports wireless firmware updates over the air making binding to receivers even easier. As well as the convenience of checking the current receiver firmware version. The R9 Mini’s compact form factor design is also carried over to the OTA version, and the R9 Mini-OTA supports redundancy function as well.



    • 868MHz (LBT Version)
    • Mini size and super lightweight
    • Supports OTA firmware update
    • Supports firmware version check
    • S.Port enabled and support telemetry data transmission
    • (Support F.Port, download firmware to support the function)
    • Supports redundancy function
    • Low latency and high precision
    • With RSSI output in SBUS
    • Battery voltage detection supported
    • Detachable Ipex connector antenna





    • Dimension: 16x10x2.8mm (L×W×H)
    • Weight: 0.7g (without antenna)
    • Number of Channels:

    LBT Version: 4/16CH (Telemetry) / 4/16CH (No Telemetry)

    • Operating Voltage Range: DC 3.5V – 10V
    • Operating Current: 100mA@5V
    • Operating Range: Up to 10km or above
    • Compatibility: R9M Lite/R9M/R9M 2019 with ACCST firmware

    R9M Lite/R9M Lite Pro/R9M 2019 with ACCESS firmware
