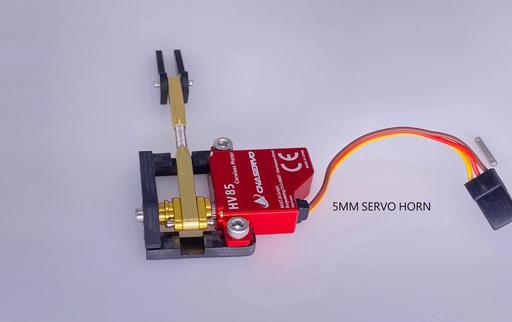

• CHAServo HV85 LDS Frame Kit

    Click image to enlarge
    From £6.48
    - CHAServo HV85 LDS Frame Kit - 4mm LDS Horn 5 in stock
    £36.00 (Incl. VAT)
    Qty - +
    - CHAServo HV85 LDS Frame Kit - 5mm LDS Horn 5 in stock
    £36.00 (Incl. VAT)
    Qty - +
    - Control Horn Size - 5.83mm 6 in stock
    £6.48 (Incl. VAT)
    Qty - +
    - Control Horn Size - 6.4mm 6 in stock
    £6.48 (Incl. VAT)
    Qty - +

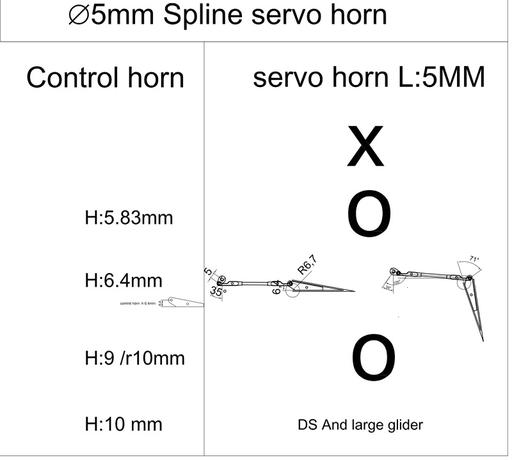

    First choose the LDS frame version with the desired LDS horn length, then select your required spec of control surface horn size for us to add to your kit.

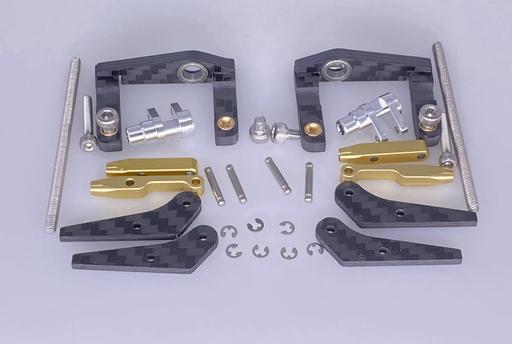

    Package include:



    2pcs d3x50mm(m3x0.5p thread)push rod
    2pcs Dual Servo Horn H:5mm
    2pcs Servo Frame
    4pcs Ø2x10.5mm Stanless Steel Pin
    8pcs E-clip
    4pcs M3x4 Screw
    4pcs M2.5x16 Screw
    2pcs Aluminum Connector 4x4x22mm (for Dual Control Horn)
    2pcs Aluminum Connector R 3.9x3.9x24mm (for LDS Servo Horn)
    4pcs Optional Control Horn piece




    Features:



    Apply to CHA HV85 SERVO
    Anodizied Aluminium Alloy Surface
    The linkage and servo arm run into each other so that the maximum servo travel can be used
    Precisely fitting and play-free servo arm (center distance 5mm)
    Optimal power transmittion possible
