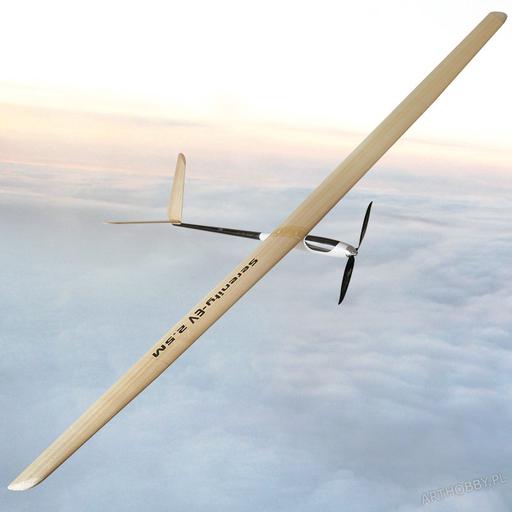

Art Hobby Serenity-EVL 2.5M Glider

Total: 0.00

The Serenity wing features MS1.8/9 airfoil that was specially modified for this sailplane, the benefit of that are very wide speed range and good thermal abilities. Its flying weight is approx. 1500 grams (52oz.) and could be flown on the slope in light to high wind condition. The Serenity wing could be built with ailerons and flaps or only with the ailerons if desired by the builder.



Features:


– composite Fuselage pod is made of few layers of fiber glass with glass roving and carbon fiber reinforcements for extra strength. It has removable Canopy for easy access to the radio gear. The V-shaped wing saddle with molded in nuts for the wing mounting bolts.
– tapered tail boom is made of carbon fiber/glass composite.
– wing cores are precision cut from white polystyrene foam, and the black poplar veneer is
bonded to the foam with aircraft industry grade epoxy in high pressure molds for perfect airfoil fidelity and a warp-free wing.
– light weight V-tail is made of foam cores preeshited with thin poplar veneer for durability and stiffness and has pre-hinged control surfaces and

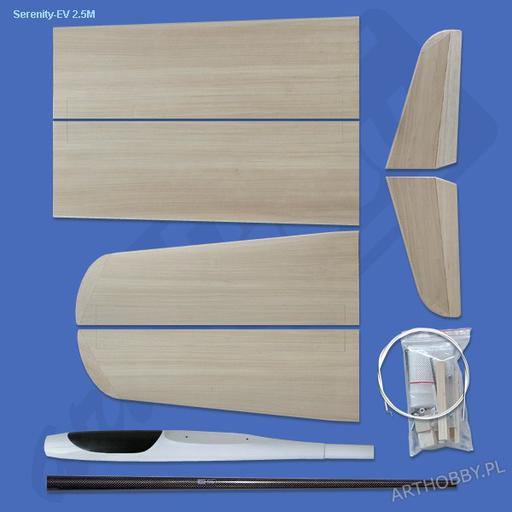

Kit contains:

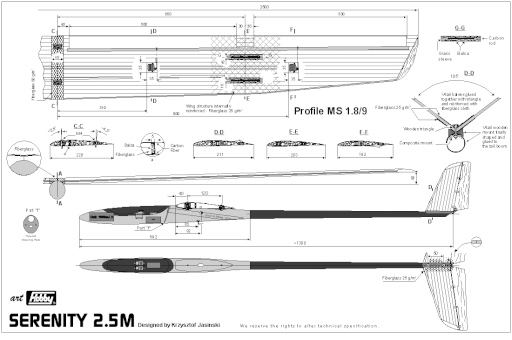

Model components, all necessary hardware, plans and step by step instructions.



Wing span
Length
Glider weight
Wing area
Wing airfoil
2500 mm / 98.4 in.
~1350 mm / 53.14 in.
800 g / 28 oz.
42.9 dm2 / 665 sq.in
MS 1.8/9-modified

Recommended
Radio
Receiver
Ailerons
Flaps
Elevator/Rudder
Battery



7+ch.
7+ ch. Opima-7, RDS8000
HS-65MG, HS-70MG, HS-85BB
HS-70MG HS-5070MH, HS-85MG
HS-65HB, HS-65MG, HS-5065MG
2200 - 2400 mAh or 2S LiPo
