Product Description

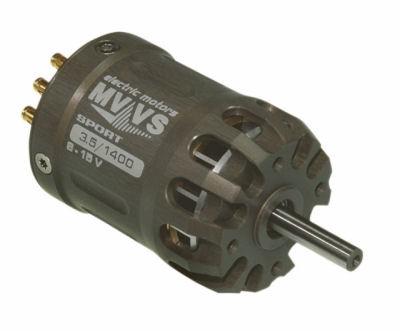

A 500 size inrunner/outrunner brushless motor with 5mm shaft and integral cooling fan. MVVS electric motors are particularly suited for use in electric powered gliders. This new design offers high levels of durability as the hardened 5mm shaft running in precision ball races is supported directly in the ends of the motor case. These motors are unbelievably smooth running as a result of the dynamic balancing. We are particularly excited about the fact that MVVS motors require no specialist techniques for servicing and all spares are readily available. MVVS electric motors are produced along with their model engine range at Brno in the Czech Republic.

Technical Data:

RPM/Volt 1200
Stator’s diameter 26mm
Length of stator 18mm
Nominal voltage 10V
Shaft’s diameter 5mm
Number of poles 12
Working voltage 8-15V
Recommended current loading 25-37A
Max. load capability 45A/60s
Number of NiCd/Lixx cells 7-12/3-4
Weight 177g

Test Figures:

MVVS 35 1200 with 8 cell Hi-Flow 3000 NiMh (3 Series A123 equivalent)
9x6 APC-E 22A 9200 rpm
10x5 APC-E 23A 9000 rpm
10x 7 APC-E 27A 8100 rpm
11x7 APC-E 30.5A 7500 rpm
12x8 APC-E 36.5A 6600 rpm

MVVS 35 1200 with 10 cell GP2200 NiMh
(3 Series LiPo equivalent)
9x6 APC-E 27.5A 10500 rpm
10x 7 APC-E 32.5A 9200 rpm
11x7 APC-E 38.5A 8400 rpm

Test figures are approximate and not taken with calibrated instruments. Figures will vary with controller settings batteries used and state of battery charge.

We recommend Jeti controllers on hard timing for the best results with MVVS electric motors.
