Product Description

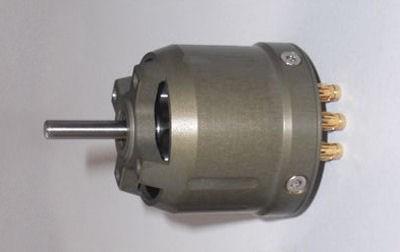

AXi 2814/12 equivalant 36mm diameter lightweight inrunner/outrunner brushless motor with 4mm shaft. MVVS electric motors are particularly suited for use in electric powered gliders. This new design offers high levels of durability as the hardened 4mm shaft running in precision ball races is supported directly in the ends of the motor case. We are particularly excited about the fact that MVVS motors require no specialist techniques for servicing and all spares are readily available. MVVS electric motors are produced along with their model engine range at Brno in the Czech Republic.

Technical data:

RPM/Volt 1350
Diameter 36mm (plus rear flange)
Length 37mm
Shaft diameter 4mm
Shaft length 18mm
Weight 109g
Normal voltage range 8-14v
Maximum efficiency current 12-24A
Maximum current 30A/30s

Suggested use:
Fun Fly to 08kg 3 LiPo APC-E 10x5
Aerobatic to 1kg 3 LiPo 9x6 to 95x6
Trainer to 17kg 3 LiPo 9x6 to 95x6
Glider to 17kg 3 LiPo Graupner CAM 9x5
Hotliner to 11kg 4 LiPo Graupner CAM 9x5
Twin Model to 18kg 3LiPo 9x5

Test Figures:
25/1350 3S Shark POWER 1800 (Polyquest 20C)
9x45 APC-E 9200 18A
9x6 APC-E 8800 21A

25/1350 3S Shark POWER 3700 (Polyquest 25C)
9x45 APC-E 10 700 24A
9x6 APC-E 10 100 28A
