Features:

• Configurable BEC Voltage Outputs
• Multiple Preset Voltage Modes Fast Switching (by Setting Button – 4 Modes: 5.0V / 7.4V / 8.4V / 12V )
• Fin Heat Dissipation Design

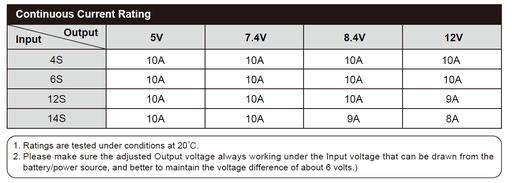

• Capable of Working under Maximum 14A Current Loads
• Working Status LED Indicator
• Compatible with FBUS/S.Port protocol

Specifications:

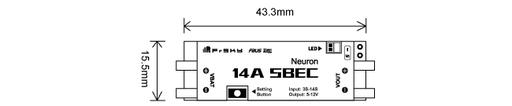

• Size: 43.3×15.5×13.5mm (L×W×H)
• Weight: 14.4g
• Adjustable Output Voltage: 5.0~12V
• – Preset voltage modes by using setting button: 5.0V / 7.4V / 8.4V / 12V
• – 0.1V step increment by configuring on ETHOS tool.
• Peak Current: 14A (dependent upon input and output voltage)
• Default Output Voltage Setting (adjustable): 5.0V
