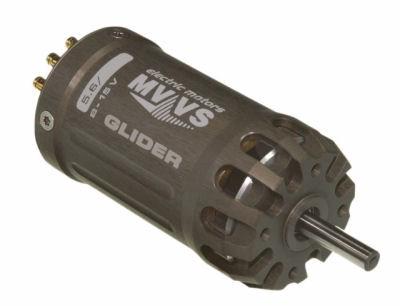

MVVS 5.6/690 Glider Brushless Motor

Total: 0.00

A long case 600 size inrunner/outrunner brushless motor with 5mm shaft and integral cooling fan. Do not be confused by the Glider name this motor is also very useful for sports and scale type models with smaller props on 4S and 5S Li-Po battery packs. This new design offers high levels of durability as the hardened 5mm shaft running in precision ball races is supported directly in the ends of the motor case. These motors are unbelievably smooth running as a result of the dynamic balancing. We are particularly excited about the fact that MVVS motors require no specialist techniques for servicing and all spares are readily available. MVVS electric motors are produced along with their model engine range at Brno in the Czech Republic.

Technical Data:

RPM/Volt 690
Stators diameter 26mm
Length of stator 36mm
Nominal voltage 15V
Shafts diameter 5mm
Number of poles 12
Working voltage 8-18V
Recommended current loading 30-40A
Max. load capability 50A/60s
Number of NiCd/Lixx cells 7-15/3-5
Weight 268g

Test Figures:

MVVS 56/690 Glider with 10 x GP2200 NiMh (3 Series LiPo equivalent)
Graupner CAM 14x95 35A 5800 rpm

MVVS 56/690 Glider with 4S Shark POWER 3700XP Li-Po
Graupner CAM 14x95 50A

Test figures are approximate and not taken with calibrated instruments. Figures will vary with controller settings batteries used and state of battery charge.

We recommend Jeti controllers on hard timing for the best results with MVVS electric motors.
