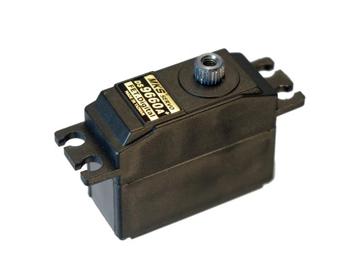

MKS Mini Servo DS9660A+

Total: 0.00

DS9660A+



Torque: 3.8 kg-cm (52.8 oz/in)(4.8V) │ 4.7 kg-cm (65.3 oz/in) (6.0V)

Speed: 0.12 s (4.8V)  │  0.09 s (6.0V)

Weight: 28 g (0.99 oz)

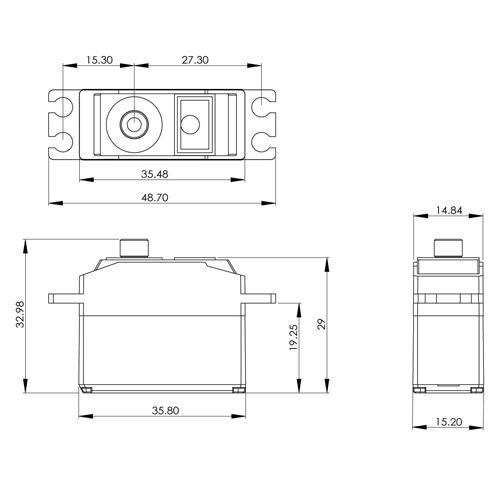

Dimensions:35.8 x 15.2 x 29 mm (1.41 x 0.6 x 1.14 in)
Operating Voltage:4.8 ~ 6.0 V DC Volts
Working frequence:1520μs / 333hz
Dead band:0.0008ms (Default)
Bearing Type:2BB
Motor Type:Coreless Motor
Gear Type:1 Titanium Gears + 4 aluminum-alloy Gears
