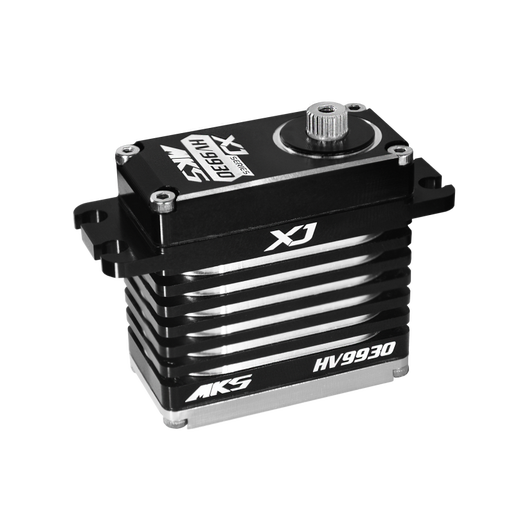

MKS HV9930 XJ Servo

Total: 0.00



MKS new range of Jet servos



Torque (6.0V): 31.4 kg-cm / 436 oz-in

Torque (7.4V): 38.8 kg-cm / 538.8 oz-in

Torque (8.2V): 43 kg-cm / 597.1 oz-in

Speed: 0.135 s (6.0V)  /  0.110 s (7.4V)  /  0.098 s (8.2V)

Weight: 74 g (2.64 oz)

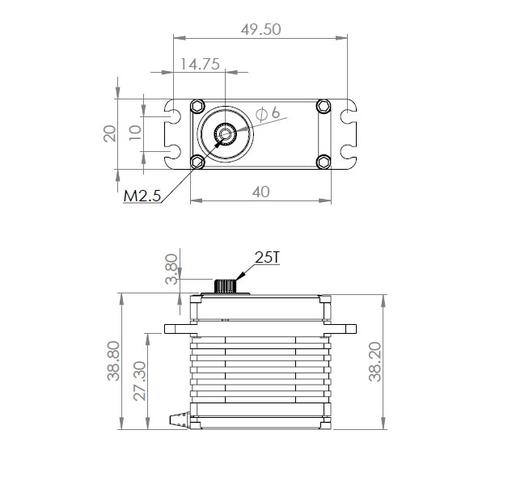

Dimension:40 x 20 x 38.2 mm



Specification:





  • Torque (kg-cm) 31.4 (6.0V) / 38.8 (7.4V) / 43 (8.2V)
  • Torque (oz-in) 436 (6.0V) / 538.8 (7.4V) / 597.1 (8.2V)
  • Speed 0.135 s (6.0V) / 0.110 s (7.4V) / 0.098 s (8.2V)
  • Working Voltage 4.8 ~ 8.4 V DC Volts (2S Lipo un-regulated)
  • Working Frequency 1520μs / 333Hz
  • Dead Band 0.0007 ms (Default)
  • Bearing 2* Ball Bearing
  • Gear Metal Alloy Gear
  • Motor Japan High Quality Coreless Motor
