MKS HS75H Servo
Total: 0.00

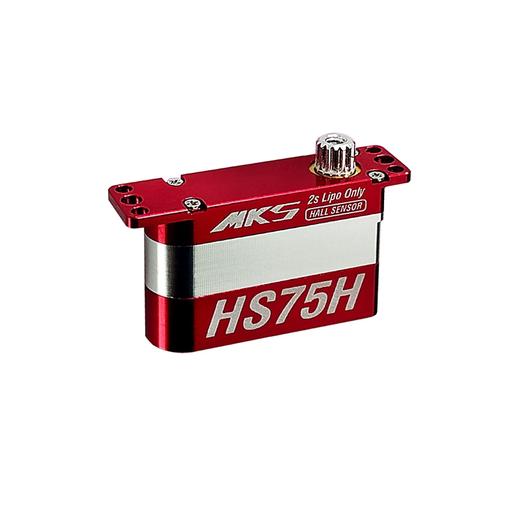

MKS HS75H Micro wing servo with Hall sensor
Torque (6.0V): 3.4 kg-cm / 47.2 oz-in
Torque (7.4V): 3.8 kg-cm / 52.8 oz-in
Torque (8.2V): 4.0 kg-cm / 55.5 oz-in
Speed: 0.143 s (4.8V) / 0.114 s (6.0V) / 0.094 s (7.4V) / 0.087 s (8.2V)
Weight: 7.9 g (±0.3 g) / 0.28 oz (±0.01 oz)

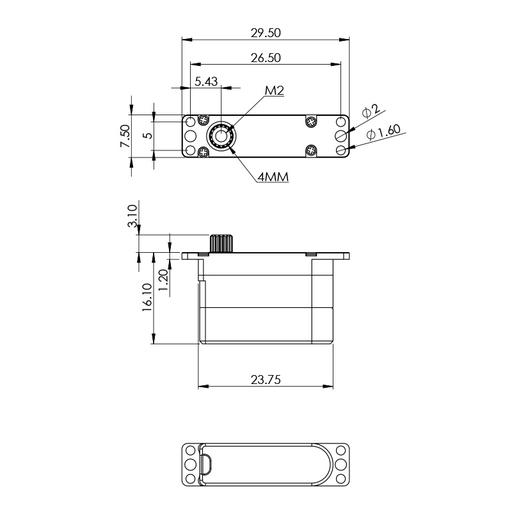

Dimension: 23.75 x 7.5 x 16.1 mm
Specification:
Torque (kg-cm) 3.4 (6.0V) / 3.8 (7.4V) / 4.0 (8.2V)
Torque (oz-in) 37.5 (4.8V) / 47.2 (6.0V) / 52.8 (7.4V) / 55.5 (8.2V)
Speed 0.143 s (4.8V) / 0.114 s (6.0V) / 0.094 s (7.4V) / 0.087 s (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Working Frequency 1520μs / 333Hz
Dead Band 0.001 ms (Default)
Bearing 2*Copper Bushings
Gear Metal Alloy Gear
Motor Coreless Motor
