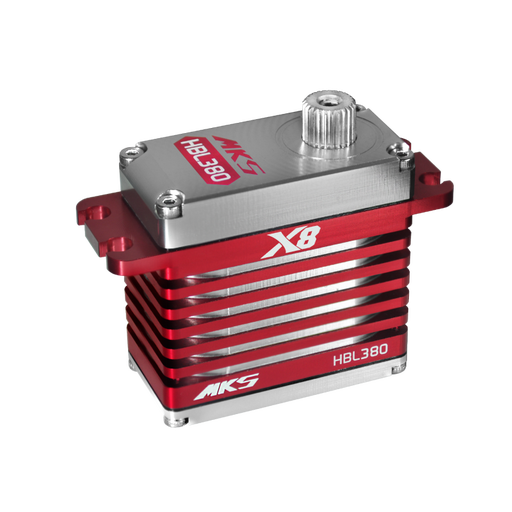

MKS HBL380 X8 Servo

Total: 0.00



Ultra torque brushless motor servo



- Perfect Servo for large-scale airplane, jet and 1/8, 1/5 scale buggy.
- Ideal for CCPM on 700~800 class helicopter.
- Ultra torque, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Output performance to the top level – smoother, faster, and more efficient.
- Special design for high voltage 2s LiPo operation.
- Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.



Torque (6.0V): 31 kg-cm / 430.5 oz-in

 Torque (7.4V): 39 kg-cm / 541.6 oz-in

 Torque (8.2V): 41 kg-cm / 569.4 oz-in

 Speed: 0.114 s (6.0V)  /  0.092 s (7.4V)  /  0.082 s (8.2V)

 Weight: 73 g (2.57 oz)

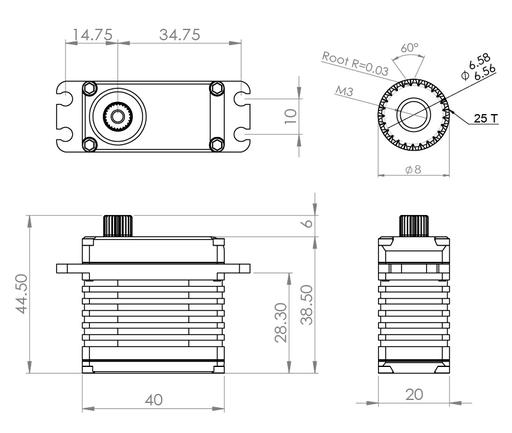

Dimension:40 x 20 x 38.5 mm



Specification:



Torque (kg-cm) 31 (6.0V) / 39 (7.4V) / 41 (8.2V)
Torque (oz-in) 430.5 (6.0V) / 541.6 (7.4V) / 569.4 (8.2V)
Speed 0.114 s (6.0V) / 0.092 s (7.4V) / 0.082 s (8.2V)
Stall Current (at locked load) 8.1A (6.0V) / 10.0A (7.4V) / 11.0A (8.2V)
Working Voltage 3.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working Frequency 1520μs / 333Hz
Dead Band 0.0008 ms (Default)
Bearing 12x8 mm Double Bearings
Gear Metal Alloy Gear
Motor Japan High Quality Brushless Motor
Wire Length 29 cm
