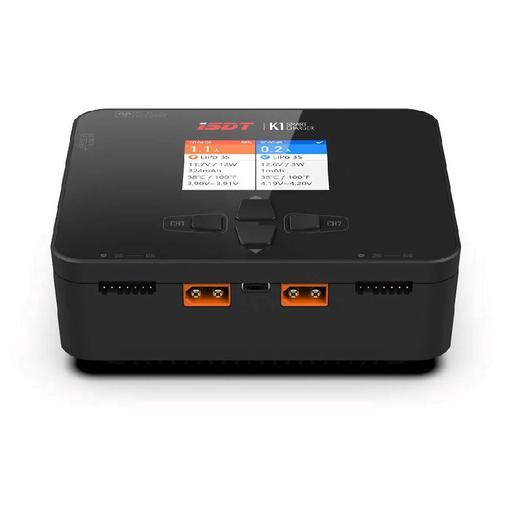

ISDT K1 250W Dual AC/DC Battery Charger

The ISDT K1 smart balance charger has two channel output for a total of 500W (when DC powered) or 100W when AC powered. The charger features a dual input - AC for 100W or DC for 250W x2. The charger supports upto 6S balance charging and also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode. The ISDT charger features a wide range of power management protection features including overload protection, over voltage protection and over temperature protection.

Features:

2.4" IPS display with auto-brightness
AC Input (100W charge rate) or DC (250Wx2 max charge rate)
Upgradeable Firmware
Adjustable Digital Power Supply (CC 0.2A~5.0A / CV 5~24V)
Battery destroy mode (discharges battery safely down to 0V)

Specification:

Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~26.4V
Max. input current: DC 20A
Charging current: 0.1~10.0A x2
Balance current: 0.5A/Cell Max
Max. charging power: AC 100W / DC 250W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S; NiMH/Cd 1-16S
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 135x115x49mm
Weight: ~485g

Please note Charger is not supplied with power lead and plug.
