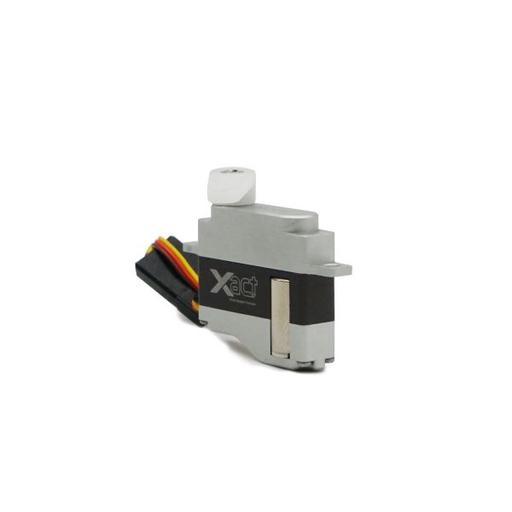

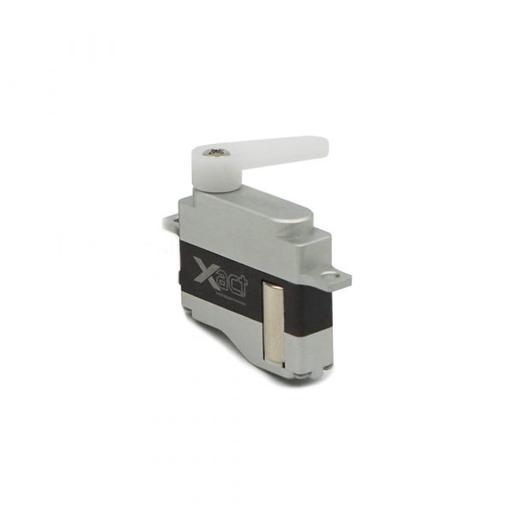

FrSky Xact H5701 Servo Hall Sensor

The Xact series coreless servos utilize all CNC machined aluminium protective case and metal gears, these servos offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.

Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be monitored and transmitted back to the radio by connecting to a F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly via an ACCESS radio through the host device of F.Port 2.0 line and also allows the servo's neutral position and travel degree to be configurable, on all the Xact series.

Features:

• For F3K DLG
• 6.5g weight & 6mm thick
• Speedy Response
• Incomparable Torque Performance
• High Precision with Zero Slop
• The Best Positioning Accuracy of Central Point
• Built-in Hall Sensor
• Programmable Travel Angle
• Robust CNC Aluminum Case with Metal Gear


Specification:

• Torque @ 3.7v – 1.40 kgf.cm / 19.4 Oz-in
• Torque @ 4.8v – 1.80 kgf.cm / 24.9 Oz-in
• Torque @ 6.0v – 2.30 kgf.cm  31.6 Oz-in
• Speed @ 3.7v – 0.16 sec/60°
• Speed @ 4.8v – 0.12 sec/60°
• Speed @ 6.0v – 0.09 sec/60°

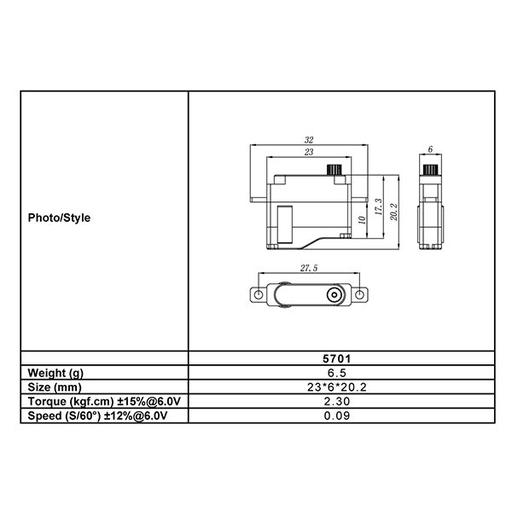

• Dimensions: 20.2x6x23mm (L*W*H)
• Weight: 6.5g
• Voltage: 3.5 – 6V
• Telemetry: Current / Temperature / Travel Angle
• Frequency: 1520us / 333Hz, 760us
• Dead Band: 0.001ms
• Bearing Ball / Gear: Metal
• Motor Type: Coreless
• Servo Horn Spline: Φ4 15T
• Programmable: Yes, Travel Angle
• Port Type: F.PORT2.0 (FBUS) / PWM / SBUS
