Art Hobby Evolution EVL 2.5 Metre Glider

Total: 0.00

The latest development of small, light weight, powerful brushless motors (example ART-1800) made possible to create this super light weight electro-glider. The Evolution-EV flying weight is approx. 1120 grams (~39 oz.) It features the MH32/30 airfoil that was specially modified for this sailplane, the benefit of that are very wide speed range and good thermal abilities. The Evolution wing also could be built with ailerons and flaps or only with the ailerons if desired by the builder.




Features:
- 2.4 GHz friendly composite fuselage pod is made of few layers of fiber glass with glass roving and carbon fiber reinforcements for extra strength. It has removable canopy for rapid access to the radio gear. The V-shaped wing saddle with molded in nuts for the wing mounting bolts.
- tapered tail boom is made of carbon fiber/glass composite.
- wing cores are precision cut from white polystyrene foam, and the black poplar veneer is
bonded to the foam with aircraft industry grade epoxy in high pressure molds for perfect airfoil fidelity and a warp-free wing.
- light weight tail made from balsa, has pre-hinged control surfaces and is fully laminated with light weight weight fiber glass cloth for durability and stiffness.

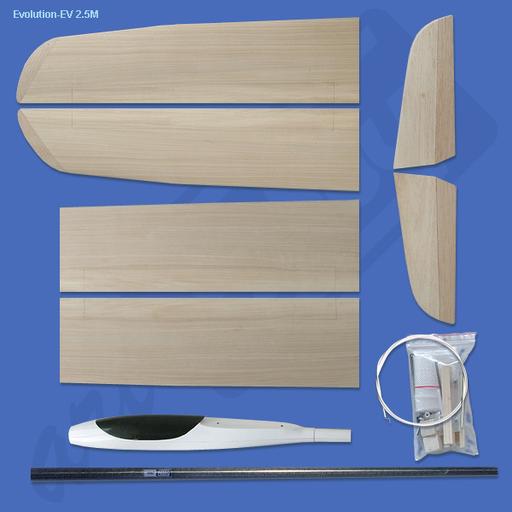

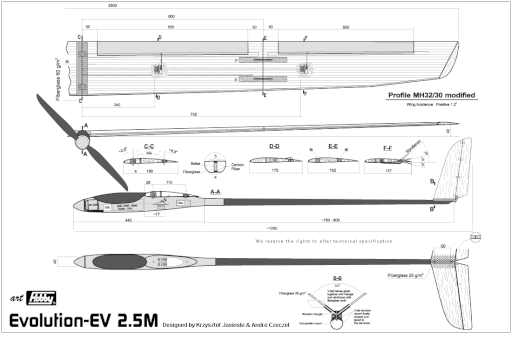

Kit contains: model components, plans, step by step instructions, and all necessary hardware.​



Wing span
Length
Glider weight
Wing area
Wing airfoil
2500 mm / 98.4 in.
~1295 mm / 51 in.
620 g / 21.75 oz.
39.53 dm/ 612.7 sq.in
MH32/30-modified
Radio
Receiver
Ailerons
Flaps
Elevator/Rudder
Motor
ESC
Spinner Diameter
Propeller
Battery
7+ch.
7+ch. Optima-7, Maxima-9, similar
2 x HS-65MG, HS-5065MG
2 x HS-65MG, HS-5065MG
1 x HS-65HB, HS-5065MG
ART-1800
35A - 36A
40 mm
15x6 CAM
1300 - 2200 mAh 3S LiPo
